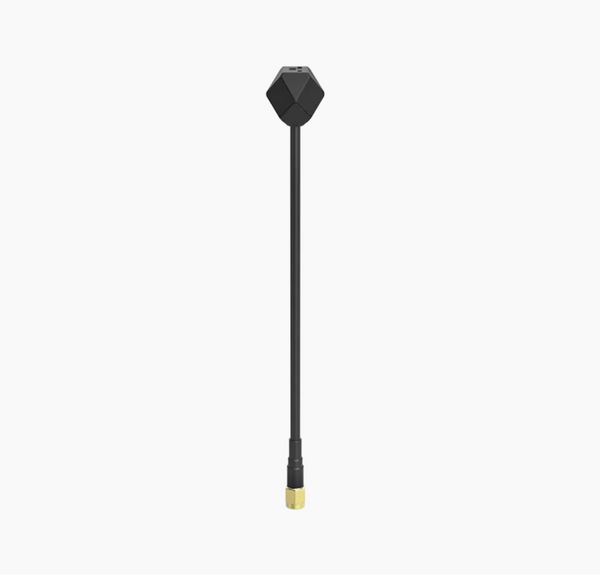

Albatross V2.1 5.8GHz 180mm Antenna 2pcs.
Introducing the new and improved Albatross V2.1 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2.1 antenna.
Dec. 25, 2025: The antennas are upgraded to version 2.1, using LDS technology, and have more stable performance than V2.
A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
Achieves higher consistency in antenna gain, thereby improving device performance and stability.
Interface: LHCP
Frequency range: 5.3GHz-6GHz
Max Gain: 3.05dBi(5500MHz)
MIN Gain: 2.85dBi (5800MHz)
AVG Gain: 2.95dBi
MAX VSWR: 1.74(5700MHz)
MIN VSWR: 1.19(5300MHz)
AVG VSWR: 1.5
MAX radiation efficiency: 68.89%(5500MHz)
MIN radiation efficiency: 64.51%(5300MHz)
AVG radiation efficiency: 66.82%
Polarization: LHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 12.2±0.5g
Size: Total length:180mm(±5mm)
