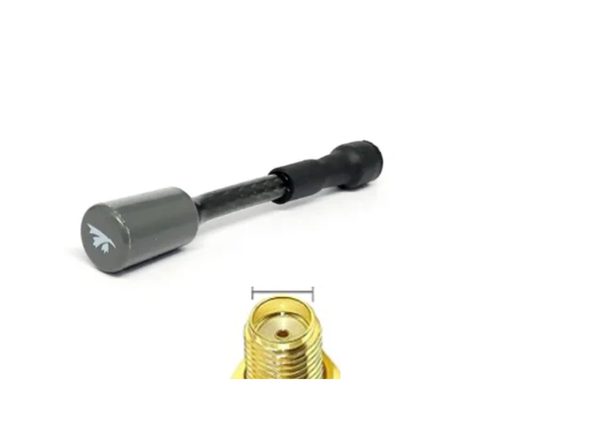

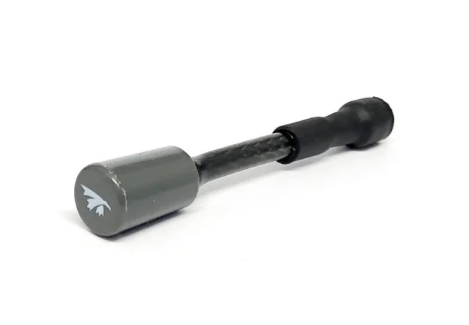

TrueRC Matchstick 5.8-RP-SMA ANTENNA (1PCS.).
The Matchstick 5.8 RP-SMA combines a Singularity element in the hardened stubby case with a carbon fiber reinforced coax cable. TrueRC's most durable antenna. Available in regular (70mm) length.
Description
The Matchstick 5.8 is a Singularity using the hardened case of the stubby version and a real carbon fiber reinforced coax cable. TrueRC's most durable antenna ever, ready to survive the worst. RP-SMA connector. Available in regular (70mm) length.
Specifications
- Gain: 1.9 dBic
- Polarization: LHCP
- Cross-Polar Rejection: −15 to −30 dB (1.9%)
- Bandwidth: 5.6GHz–6.0GHz
- Radiation Efficiency: 99%
- SWR: ≤1.5:1
- Weight (regular): 6.2g
- Weight (long): 7.8g
- Size (regular): 12.7mm × 70mm
- Cable: 100% carbon fiber reinforced
- Connector: RP-SMA
Data sheet:
- Frequency 5.8(GHz)
- Type of polarization: LH Circular polarization
- Connector: RP-SMA
