Rekon 6
Concept
This six-inch platform is an adaptation of the Rekon 5 to match the new light 6” t-mount props that now entered the market. The main advantage of 6" compared to the 5" version is the ability to carry even higher loads, especially large four cell 21700 Lithium-Ion packs with over 4000mAh for extreme flight times. With its 1500kV 2105.5 motors the quad can be run on 6S for increased power, but it is mainly intended as an ultra-high efficiency cruiser on 4S.
Frame Design
The Rekon 6 features an innovative frame design using single-piece front and rear arms locked by an aluminium bolt. The bolt is used to create a strong and stiff center section of the frame, locking the arms and de-coupling forces from the rest of the frame. This allows the use of use very light M2 hardware and thin carbon plates on the other parts of the frame, reducing the overall weight for maximum efficiency. On top of that, the bolt makes it possible to apply much more torque and it's not prone to break or strip like M2 or M3 hardware often does. A lot of attention was also put toward the design of the front and camera mount. Dead cat frames are inherently prone to take heavy impacts in this area since the arms are swept backward and the front is exposed. This is why the Rekon 6 uses a flexible, 3D printed canopy supported by a carbon brace to absorb impact energy and protect the camera in case of a crash.
Key Features
- Lightweight frame with 10mm aluminium bolt construction, compact 25/20mm standoff split deck main body for double 20x20 stacks
- Shock absorbing TPU front with integrated GoPro mount
- Foldable crossfire immortal T-mount inspired by Alexandre Arvinte (@ledrone.club)
- Mild dead cat design reducing the props in view while not affecting flight performance
- Optional braces for improved vibration dampening and crash resistance
- Optimized for 2105.5 and 2303 motors with 12x12 M2 mounts
- GPS mount for M80 GPS
- External buzzer mount for Soter Buzzer

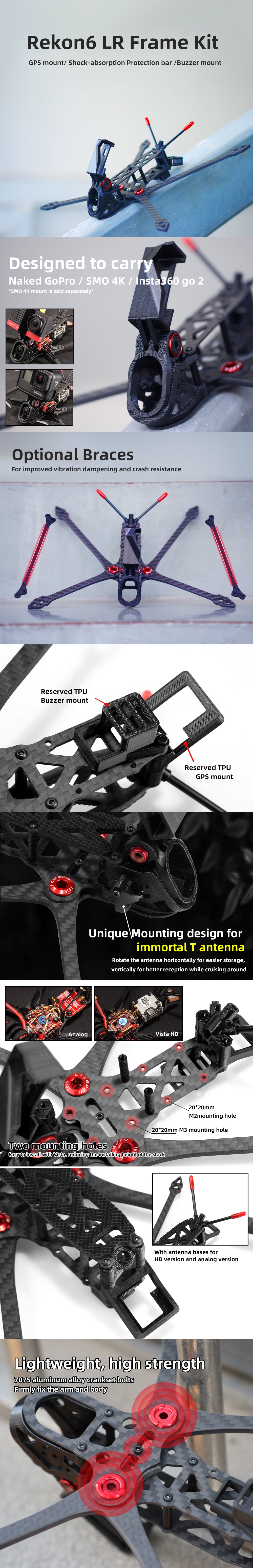

RekonFPV Rekon6 Ultra Light Long Range Frame Kit 6 Inch for FPV Racing Drone
Brand Name:Rekon
Model:Rekon6 LR Frame Kit
Material:3K Carbon Fiber
Type:6" frame
Wheelbase:244mm
size:235*180mm
Top plate:1.5mm
Bottom plate:1.5mm
Middle plate:1.5mm
Unibody Arm:4mm
Protective bar:3mm
Top and middle plate space:20mm
Installation holes:20x20mm
Support camera:19*19mm
Motor Installation holes:∅12
Weight: g
Package Includes:
1x 1.5mm top plate
1x 1.5mm bottom plate
1x 1.5mm middle plate
2x 4mm arms
2x 3mm protective bars
2x M2*25mm Screws
4x M2*20mm Screws
4x M3*20 Screws
4x M2*20 Screws
1x M2*14 Screws
11x M2*9 Screws
12x M2*5 Screws
1x M5*20 Screws
1x M5 Screws
1x M5 nut
2x 7075 Screws
2x M2*4 Screws
4x M3 Self-tightening nuts
5x M2 Self-tightening nuts
8x M3*8 shock-absorption balls
4x M2*4 shock-absorption balls
2x Battery straps 20x200mm
1x Battery Anti-slip pad
1x TPU SMA antenna mount
1x TPU antenna mount
1x TPU camera mount
1x TPU naked Gopro mount
1x TPU GPS mount
1x TPU buzzer mount
1x TPU T-shape antenna rotating mount
1x TPU T antenna mount
Recommended Parts:( Not Included )
Flight Controller:Zeus F722mini
Motor:20xx/21xx
ESC:Zeus 25A-40A
Camera:19X19mm
Propeller:6 Inch
