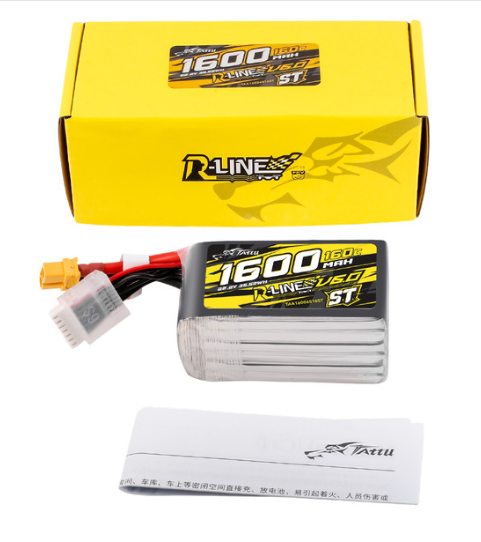

Tattu R-Line Version 6.0 1600mAh 160C 6S 22.2V ST Lipo Battery Pack with XT60 Plug.
Tattu R-Line Version 6.0 Key Features
1. Higher Energy Density, Safer Design
With a new lithium salt formula and semi-solid electrolyte, the battery reaches a volumetric energy density of 316Wh/L (+26%) and a gravimetric energy density of 160Wh/kg (+17%). Reduced liquid content also means better safety and longer battery life.
2. Stable Power with 3D Conductive Tech
A combination of conductive graphite, carbon nanotubes, and graphene builds a solid 3D network, allowing efficient and steady high-current output. Power remains stable even during intense bursts.
3. Faster Response with Nano Materials
Nano-particle material and porous electrode structure shorten ion diffusion paths and reduce internal resistance (IR) by 20%, enabling quicker throttle response and stronger bursts of power.
4. Stronger Structure, Better Durability
The improved internal design enhances heat dissipation and impact resistance. Whether you’re crashing in freestyle or pushing hard in a race, R-Line V6 stays dependable.
5. Same Performence, Two Shapes
- SQ Short Version: Focused center of gravity, improved handling.
- ST Stick Version: Standard dimensions, flexible placement.
Specifications
- Minimum Capacity: 1600mAh
- Configuration: 6S / 22.2V / 6 Cells
- Discharge Rate: 160C
- Net Weight(±20g): 240g
- Dimensions: 77*37.5*40mm(L x W x H)
- Charge Plug: JST-XHR
- Discharge Plug: XT60
- Shape: ST stick version
| Brand: | Tattu |
| Capacity(mAh): | 1600 |
| Voltage(V): | 22.2 |
| Configuration: | 6S1P |
| Discharge Rate (C): | 160C |
| Connector Type: | XT60 |
| Length(±5mm): | 77 |
| Width(±5mm): | 37.5 |
| Height(±5mm): | 40 |
| Net Weight(±5g): | 240 |
| Discharge Wire Length(mm): | 45mm |
| Wire Gauge: | 12# |
| Balancer Connector Type: | JST-XHR-7P |
| Balancer Wire Length(mm): | 45mm |
Ideal For:
FPV Racing, Freestyle and Cinematic.
