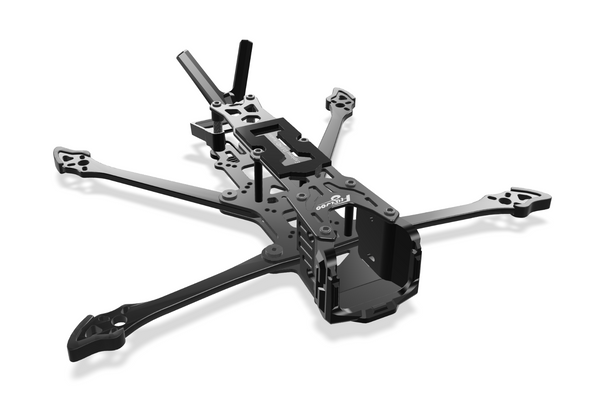

Explorer LR 4 V2 Frame kit.
Explorer LR 4 O4 PRO V2 is a 4-inch sub-250 micro long-range FPV drone built around the DJI O4 Pro Air Unit. V2 adds a redesigned camera mount with four custom damping balls to reduce vibration on newer O4 batches. With a 4S 750mAh pack, takeoff weight is about 246g. For longer cruising, pair it with FLYWOO 18650 3000mAh packs for up to about 28 minutes of flight.
Features:

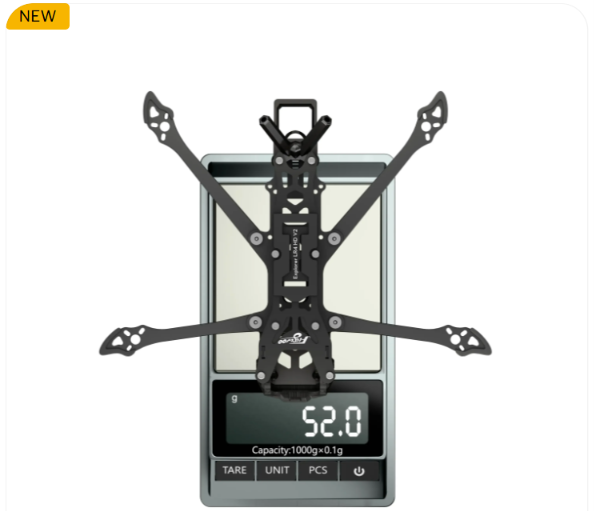

- 52g lightweight frame kit for 4-inch long-range FPV builds.
- V2 damping camera structure with four rubber damper balls.
- Supports O3, O4 Wide, O4 Pro and Walksnail Pro kit air unit installation.
- Camera supports 20 x 20mm size.
- Motor mount hole supports φ9mm and φ12mm.
- FC + ESC mounting supports 16 x 16mm and 20 x 20mm hole patterns.
- VTX mounting supports 16 x 16mm, 20 x 20mm and 25.5 x 25.5mm hole patterns.
- Reserved mounting positions for GPS and FLYWOO Finder.

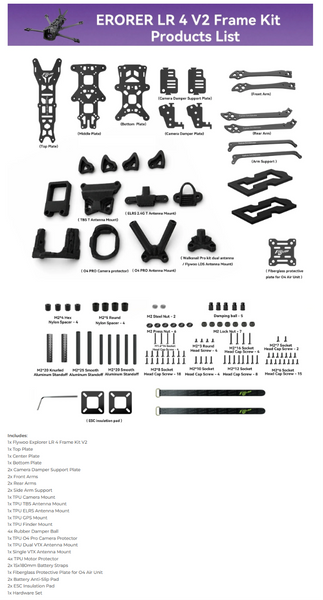

- Includes TPU mounts, straps, pads, damper parts and hardware set.
Specifications:
- Product Name: Explorer LR 4 V2 Frame Kit
- Category: 4-inch long-range FPV frame kit
- Frame Weight: Approx. 52g net frame weight
- Camera Structure: V2 damping structure with four rubber damper balls
- Camera Size Support: 20 x 20mm
- Air Unit Support: O3 / O4 Wide / O4 Pro / Walksnail Pro kit air unit installation
- Motor Mount Hole: φ9mm / φ12mm
- FC + ESC Mounting: 16 x 16mm / 20 x 20mm mounting hole patterns
- FC + ESC Installation Space: Approx. 19.5mm height x 32.5mm width
- VTX Mounting: 16 x 16mm / 20 x 20mm / 25.5 x 25.5mm mounting hole patterns
- VTX Installation Space: Approx. 19.5mm height x 43mm width
- Reserved Mounting Positions: GPS and buzzer / FLYWOO Finder mounting positions
- Recommended Accessories: FLYWOO Finder V1.0 and GOKU GM10 Mini GPS
