PROTO25 Micro Long Range Ripper Frame Kit O4 Pro (Violet).

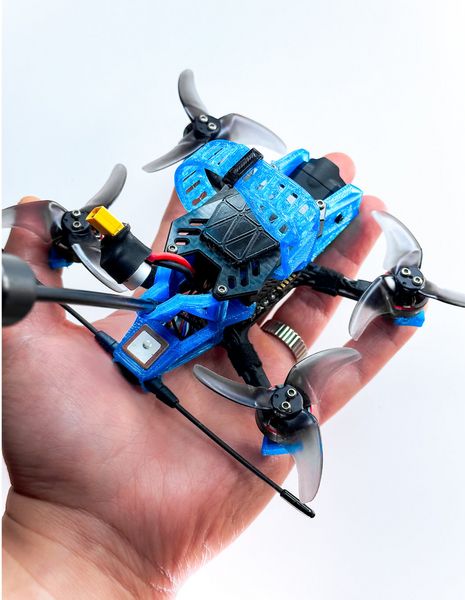

Introducing PROTO25. A sub250g 2.5" born from my very dreams. I always wanted a low key quad with long range, GPS, 4K recording, no props in view in an ultralight and compact package. P25 is easy to pack in your bag, stable, powerful, sick looking, and built for ripping up epic parks and urban jungles with ease!
~PattyFlipz
Features:
1) Squashed X geometry with no props in view even in ultrawide mode
2) Aesthetically designed Toray T700 plain weave matte carbon fiber frame
3) 36 Titanium M2 screws for maximum weight reduction and performance
4) Multi-color WS2812 LED light included
5) VTX Quick swap feature. Easily move or reinstall quickly
6) Designed to be universal. Frame works with action cameras, analog, HD Zero, etc.
-
SPECS
Top plate: 1.5mm
Base plate: 3mm
Electronics Mounting: M2 20x20, M2 25.5x25.5
Maximum Electronic Component Size: 40x40
Motor Mount: 9x9
Max prop size: 2.5"
Action Camera / Accessories Mounting: Top Plate
Battery Strap Mounting: Top mount, Toilet Tank & Undermount
Recommended Camera Mounting Size: 19mm ~ 20mm (Variable)
Stand off height: 28mm
Stand off width: 22mm
Wheelbase: 97.32mm x 66.51mm
Antenna mounting size: 3~4mm Post

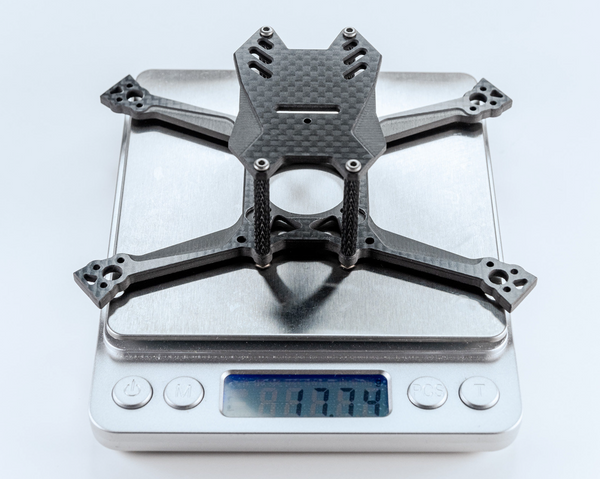

Frame weight: 17.74g (no TPU)
Build weight potential: 115g ~ 140g (no lipo)
Top Speed: 130kph
-
INCLUDES
T700 Carbon Fiber Plates
x1 Top plate
x1 Base plate
3D Prints
x1 Protostrap S (smaller batteries)
x1 Protostrap MS (medium/small sized batteries)
x1 Antenna Mount
x1 GPS + RX Tray (Only known to fit GOKU GM10 Nano V3 GPS)
x1 Camera Cage
x1 VTX quick swap Holder (2 pc)
x1 LED Light Holder
x1 Action camera base mount (Not in DJI O4 AU Pro Kit)
x1 Feet Set (4 pc)
x1 20x20 to 25.5x25.5 Adapter (Not in DJI O4 AU Pro Kit)
Hardware
x1 Tessegrip - super sticky customizable battery pad
x4 M2x28 aluminum stand offs
x4 M2x5 nylon spacers
x2 M2x4 screws (camera) (x4 in DJI O4 AU Pro Kit)
x2 M2 washers (camera)
x13 M2x5 Ti screws (motors, action cam mount)
x8 M2x6 Ti screws (frame)
x8 M2x7 Ti screws (props)
x4 M2x12 Ti screws (AIO)
x4 M2x22 screws (stack) (Not in DJI O4 AU Pro Kit)
x1 M3x14 Ti screw (action cam bolt) (Not in DJI O4 AU Pro Kit)
x8 M2 nylon nut (AIO, stack, action cam mount stay)
x1 M3 thin nut (action cam nut) (Not in DJI O4 AU Pro Kit)
x1 WS2812 LED (light holder)
x4 Zip tie
x1 30awg wire set (LED to FC)
Recommended Parts:
FC- Flywoo GOKU GN 745 45A AIO 32 bit (MPU 6000) V3
Motors: T-Motor F1404-4600KV FPV Racing Motor 3-4S
Props: Avan Rush 2.5 inch Prop-RED
Battery: Tattu Lipo Battery 850mah 4S 150C
-
