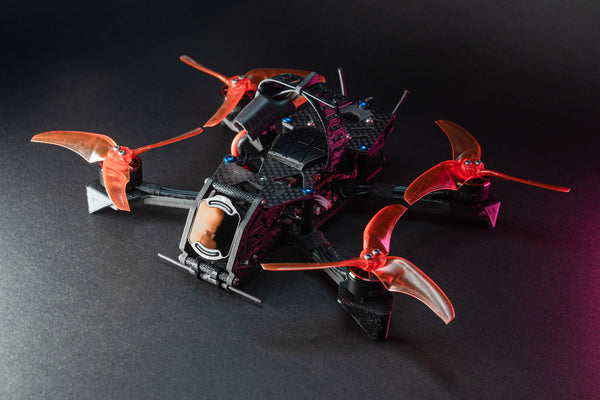

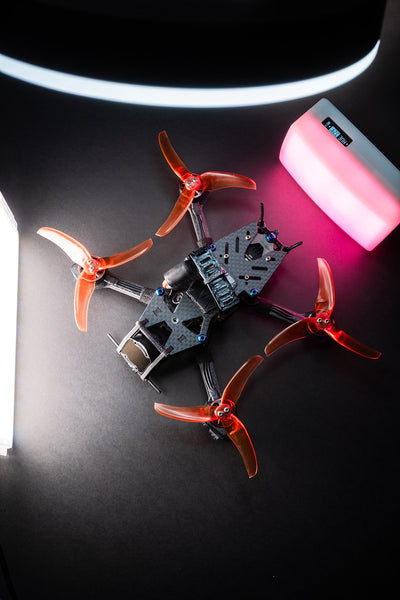

PROTO35 Gauntlet-RED TPU.
No hype, just pure 3.5" performance. 😉
P35G is a top-tier 3.5" frame, built with lightweight T700 carbon fiber and locked in with titanium screws. Engineered for minimal vibration and resonance, it delivers sharp, precise tuning for killer performance. No props in view means your footage stays clean and cinematic plus the camera remains protected with it's thick carbon fiber camera cage. P35G rips through the air with a roar like a mini F1 race car and is DJI O4 Pro ready or compatible with most 19-20mm camera and VTX systems in the market today.
Highlights:
1) Minimal to no props in view
2) Lightweight sub250 while still using thick hardware from a 5" tank
3) Full 2.5mm thick carbon fiber camera cage - Up to 45 degree tilt
4) TPU60A pro camera inserts reduce jello or vibration effects to the camera
5) Tune it up! Ultra rigid frame with low vibration and resonance characteristics
6) Every carbon fiber piece is low cost and replaceable
7) 12 supporting TPU prints included
8) 51 titanium screws included
9) 9x9 or 12x12 motor configuration. Build it 4S, 6S, however you like!
-
SPECS:
Top plate: 2mm
Base plate: 2mm
Arms: 4mm
Camera Cage: 2.5mm
Electronics Mounting:
Main: M2 20x20, M2 25.5x25.5
Top Plate rear: M2 20x20, M2 25.5x25.5
Motor Mount: 9x9, 12x12
Max prop size: 3.5"
Action Camera / Accessories Mounting: Top Plate Front
Battery Strap Mounting: Top mount and Toilet tank
Recommended Camera Mounting Size: 19mm ~ 20mm (Variable)
Interior height: 24mm
Antenna mounting size: 3~4mm Post
Frame weight: 49g (no TPU)
Build weight potential: 165 - 180g (no lipo)
-

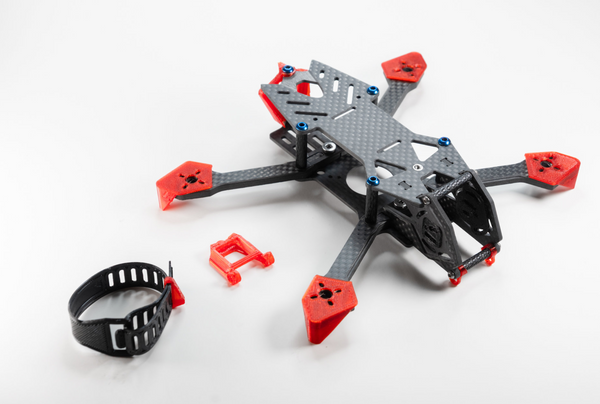

INCLUDES:
T700 Carbon Fiber Plates
x1 Top plate
x1 Arm cap F
x1 Arm cap R
x1 Arm 1
x1 Arm 2
x1 Arm 3
x1 Arm 4
x1 Camera cage set
x1 Base plate
3D Prints
x1 Protostrap MS (medium/small sized batteries)
x1 Dual antenna mount
x1 Nano GPS tray
x1 RX antenna holder set
x1 LED light holder
x1 Feet Set (4 pc)
x1 Cam dampener set L&R
Hardware
Titanium M3 x 5 top plate
6
Titanium M3 x 10 bottom plate arms
4
M2x22 Stand off
2
M3x24 Stand off
1
M3x20 Stand off
4
Titanium M2 x 5 camera/vtx/acm
9
Titanium M2 x 6 cage
4
Titanium M2 x 7 motors, props, arm caps
28
M2 x 22 screw stack/aio
4
M2 washer (camera)
4
M2 nylon nut (Aio or VTX)
12
M2x5 nylon Stand off (VTX Spacer)
4
Single LED WS2812
1
Spare 30AWG wiring
1
Zip Tie
4
RECOMMENDED PARTS (Not Included)
My Build Specifications:
Motors: GEPRC 1505 4300kv
Power: 4S
AIO: Flywoo 45A AIO
Mini Stack: Flywoo 45A Mini Stack
Or any 35A equivalent will do
Props: Avan Scimitar 3.5x2.8x3
VTX: O4 AU PRO https://tinyurl.com/2wvs6e5t
Receiver: TBS Crossfire nano RX w/Mini-T V2
GPS: Nano GM10 GPS
Weight: 175g
-
