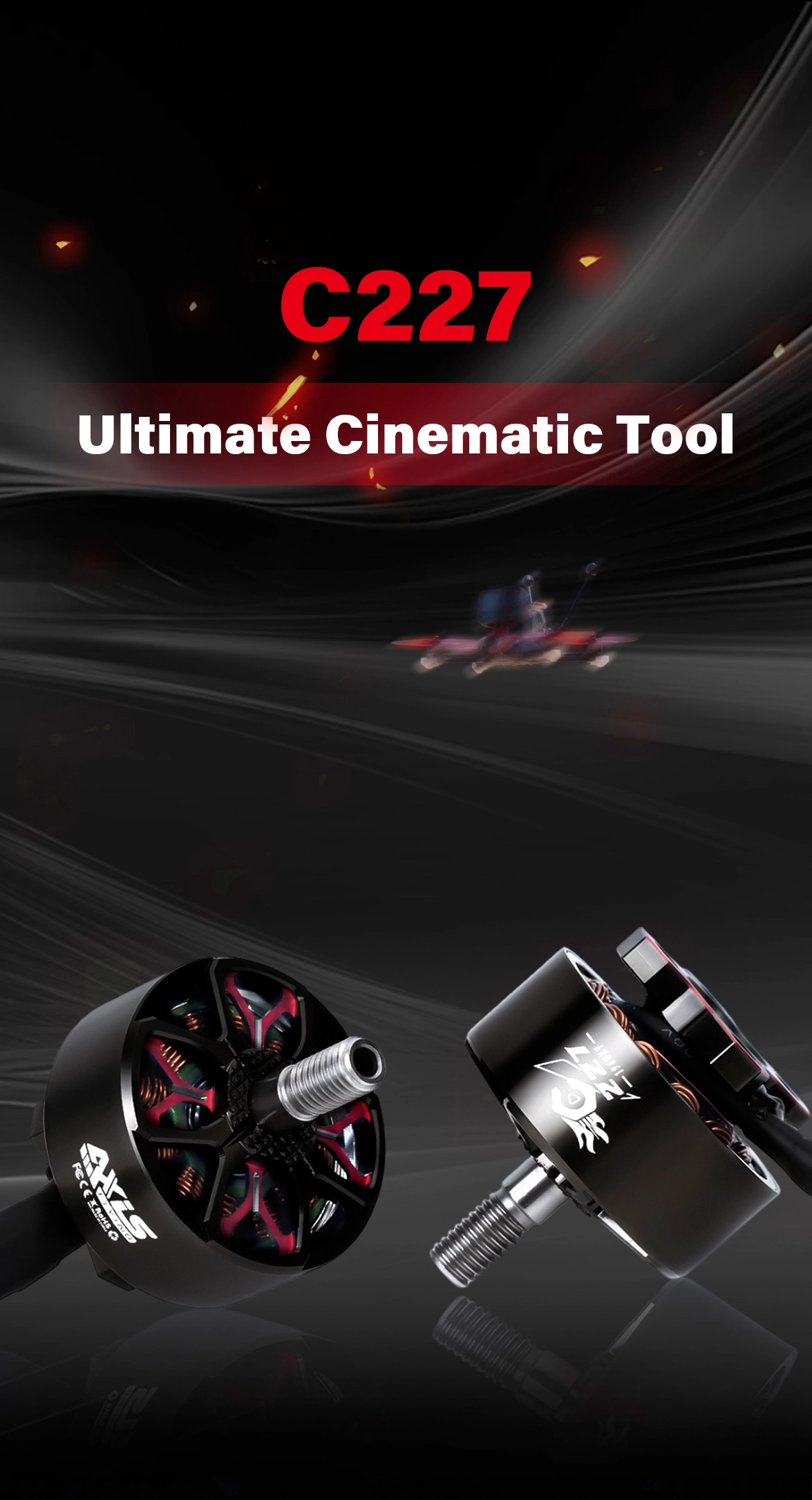

Axisflying C227/5 inch C2207 1960KV brushless motor.
Foreword
With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.
The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.
Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.
The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
Feature
- C227 has high performance, high efficiency, smooth linear throttle.
- C227 designed for 5-inch Cinewhoop / Cinematic FPV drones.
- 220°C high-temperature enameled wire, stable performance under high load.
- N52H high-purity magnets for stronger torque & better heat resistance.
- Imported NMB bearings & integrated aluminum alloy rotor, durable.
- Enhanced crash resistance by 25% with new material structure.
- Stable full-throttle output, precise control for professional shooting.

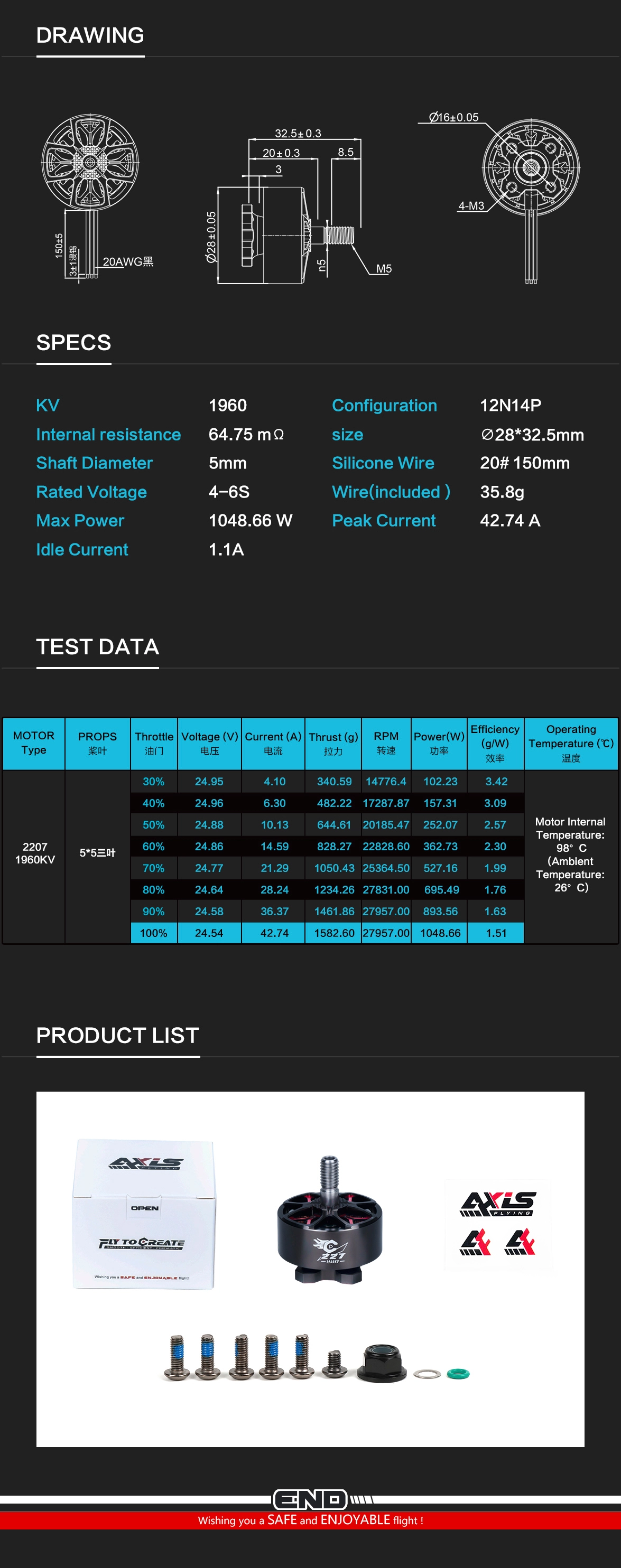

Specs
- KV: 1960KV
- Configuration: 12N14P
- Internal resistance: 64.75 mΩ
- Stator: C2207
- Size: Φ28×32.5mm
- Shaft Diameter: 5mm
- Silicone Wire: 20# 150mm
- Rated Voltage: 4–6S LiPo
- Weight (with wire): 35.8g
- Max Power: 1048.66W
- Peak Current: 42.74A
- Idle Current: 1.1A
- Mount: 4-M3
- Application: 5-inch Cinewhoop / Cinematic FPV
Package
- 1× C227 motor
- 1× Mounting screws set
- 1× Shaft lock screw & washer
- 1× O‑ring
