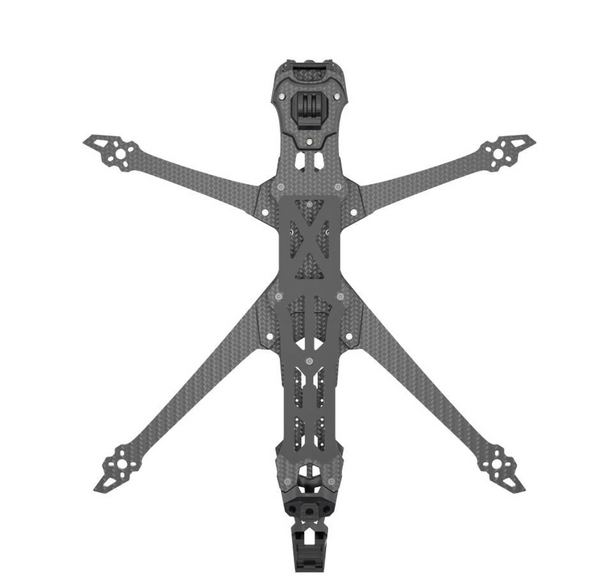

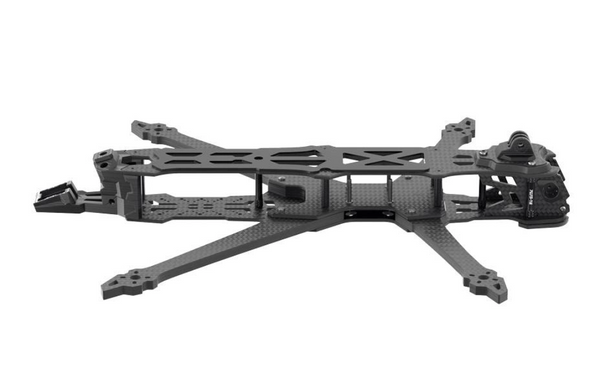

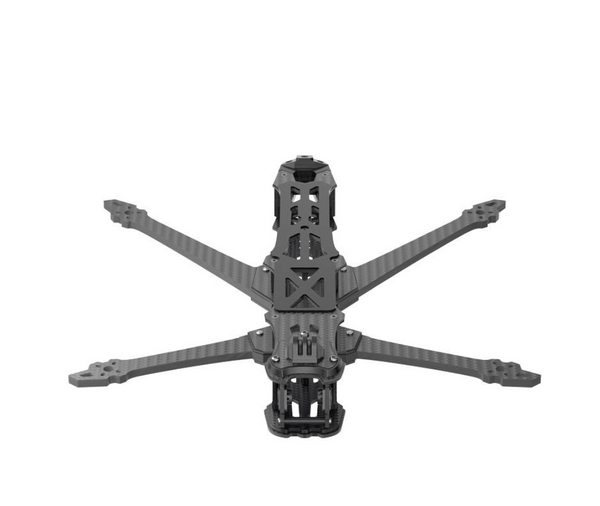

GEPRC Pulsar LR9 Frame Kit.
Introducing the GEPRC Pulsar LR9 Frame Kit, a strategic addition to the long-range series by GEPRC. Specifically crafted for extended flight durations, the Pulsar large wheelbase frame offers both robustness and spaciousness, catering to a variety of electronic installations.
Features
- Specialized Camera Structure: Incorporates a unique TPU print structure, mitigating video jello effects, and ensuring clearer visuals.
- Ample Installation Space: Provides generous room for integrating various electronic components, catering to diverse requirements.
- Robust Arm Design: Features a 3.7mm thick arm, bolstering the aircraft's resilience and longevity.
- Premium Aluminum Construction: Uses a customized bold aluminum column, crafted from high-quality aviation grade 7075-T6 aluminum, guaranteeing durability.
- The GEPRC Pulsar LR9 Frame Kit is engineered for those who prioritize extended flight ranges, robust build quality, and versatile equipment installations.
Specifications
- Model: Pulsar LR9
- Frame: GEP-Pulsar LR9 Frame KIT
- Wheelbase: 385mm
- Top plate: 3.0mm
- Bottom plate: 3.0mm
- Arm plate: 7.0mm
- Arm splint: 3mm
- Camera mount splint: 3.0mm
- FC installation position: 30.5*30.5mm
- VTX installation position: 20*20mm / 25.5*25.5mm / 30.5*30.5mm（Maximum support for outer dimensions 30.5*30.5mm)
- Camera installation size: 19mm/20mm
- Weight: 563.4g ± 5g
- Propeller: 9 inch propeller
Includes
- 1 x GEP-Pulsar frame
- 2 x M20*250mm battery straps
- 2 x Battery non-slip pad
- 1 x Screw pack
- 1 x 3D printed parts
- 1 x L-shaped screwdriver 1.5mm
- 1 x L-shaped screwdriver 2mm
- 1 x L-shaped screwdriver 3mm
