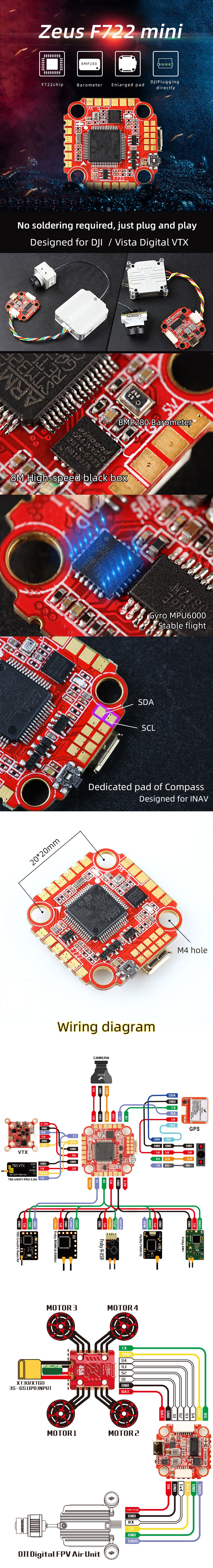

HGLRC DJI Zeus F722 mini 3-6S F7 Flight Controller

Regular price $49.99

Shipping calculated at checkout.

HGLRC DJI Zeus F722 mini 3-6S F7 Flight Controller Betaflight | Emuflight | iNav | Flightone.

DESCRIPTION:

HGLRC Zeus F722 mini 3-6S F722 Flight Controller Support I2C function


Usage: for 100mm-450mm Frame Kit
FC Firmware: BF HGLRCF722(HGLR)
Installing Hole:20X20mm.M3

Item Name: Zeus F722 mini Flight Controller Support I2C function
MPU:MPU6000
UARTS:5
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output:9V/1A
5V/2A
Black Box: 8M
Barometer:BMP280(I2C)
Support Compass: Supported
Size:28.2x28.1mm
Installing Hole:20X20mm.M3
Weight:4.2g

Product Features:
1.Integrated barometer and 8M black box.
2.Maximum BEC 9V/1A and BEC 5V/2A output
3.Easy direct soldering for XM+,NANO receiver
4.Quickly connect DJI
5.Support I2C function

Package Included:
1x Zeus F722 mini Flight Controller
5x M3 Shock absorption (red)
1x SH1.0 8PIN 60mm Cable
1x DJI AIR UNIT PORT CABLE 90mm

Download hex file for iNAV 2.5.1 here. Or use target "HGLRCF722" on iNAV 2.5.2 and future versions.

Download hex file for emuflight here

Target is " HGLRC F722" for flightone firmware, you will also need to purchase the flightone license separately.

See manual here:F722 MINI Flight controller
