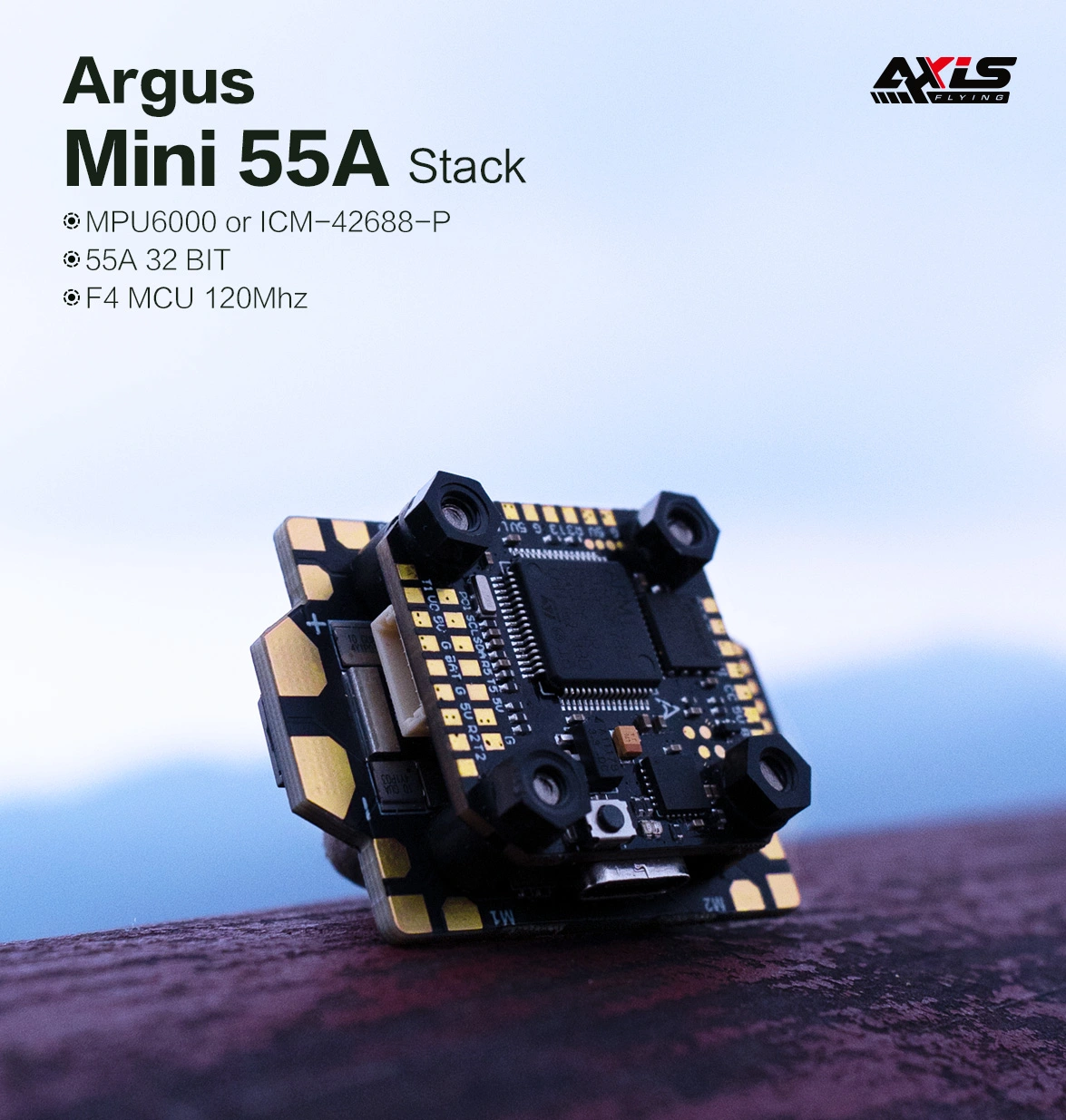

Axisflying Argus Mini 4-6s 55A stack F7 Pro FC /55A ESC 32 BIT BLHeli_32

Foreword

Feature

• Compact stack: F7 Pro Flight Controller + 55A 32-bit 4-in-1 ESC
• FC: STM32F722RET6 high-performance processor
• Gyro: MPU6000 / ICM-42688-P optional
• ESC: AM32 firmware, 55A continuous, 65A burst
• 4–6S wide voltage input, perfect for 5-inch FPV
• 5V 3A BEC, sufficient for cameras and peripherals
• 16M blackbox, barometer, OSD, GPS supported
• Standard 20×20mm mounting, universal for mini frames
• Complete cable set for plug-and-play installation

Recommended Configuration

• Stack: Argus Mini F7 Pro + 55A 32-bit ESC
• Input Voltage: 4–6S LiPo
• FC: F7 Pro (STM32F722RET6)
• ESC: 55A continuous / 65A burst
• Mount: 20×20mm (M2/M3)
• Application: 5-inch FPV, freestyle, HD VTX drones

Specifications

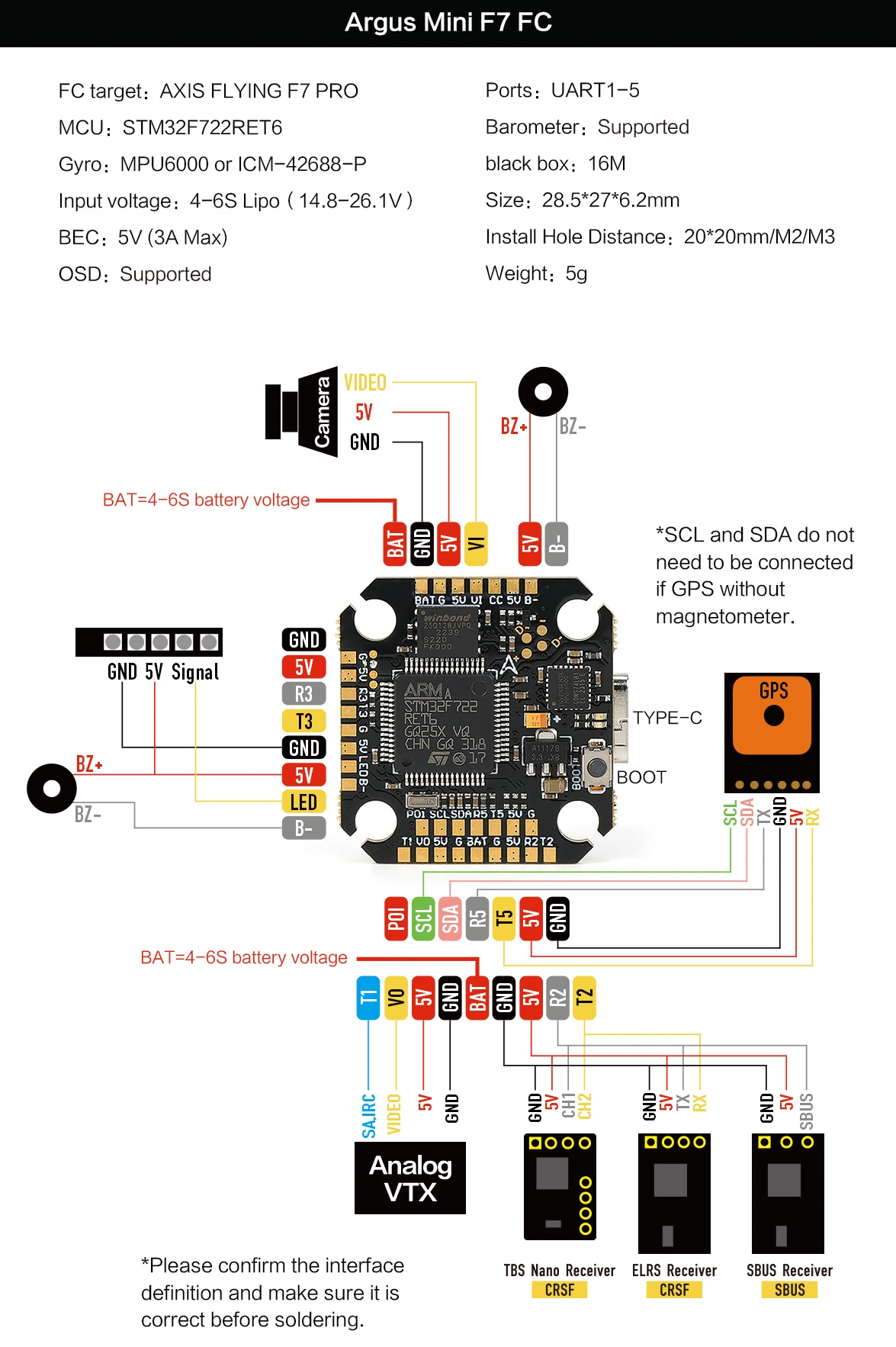

Flight Controller: Argus Mini F7 Pro

• FC Target: AXIS FLYING F7 PRO
• MCU: STM32F722RET6
• Gyro: MPU6000 / ICM-42688-P
• Input Voltage: 4–6S LiPo (14.8–26.1V)
• BEC: 5V (max 3A)
• UART: 5 sets (UART1–5)
• OSD: Supported
• Barometer: Supported
• Blackbox: 16M
• Size: 28.5×27×6.2mm
• Mount: 20×20mm (M2/M3)
• Weight: 5g

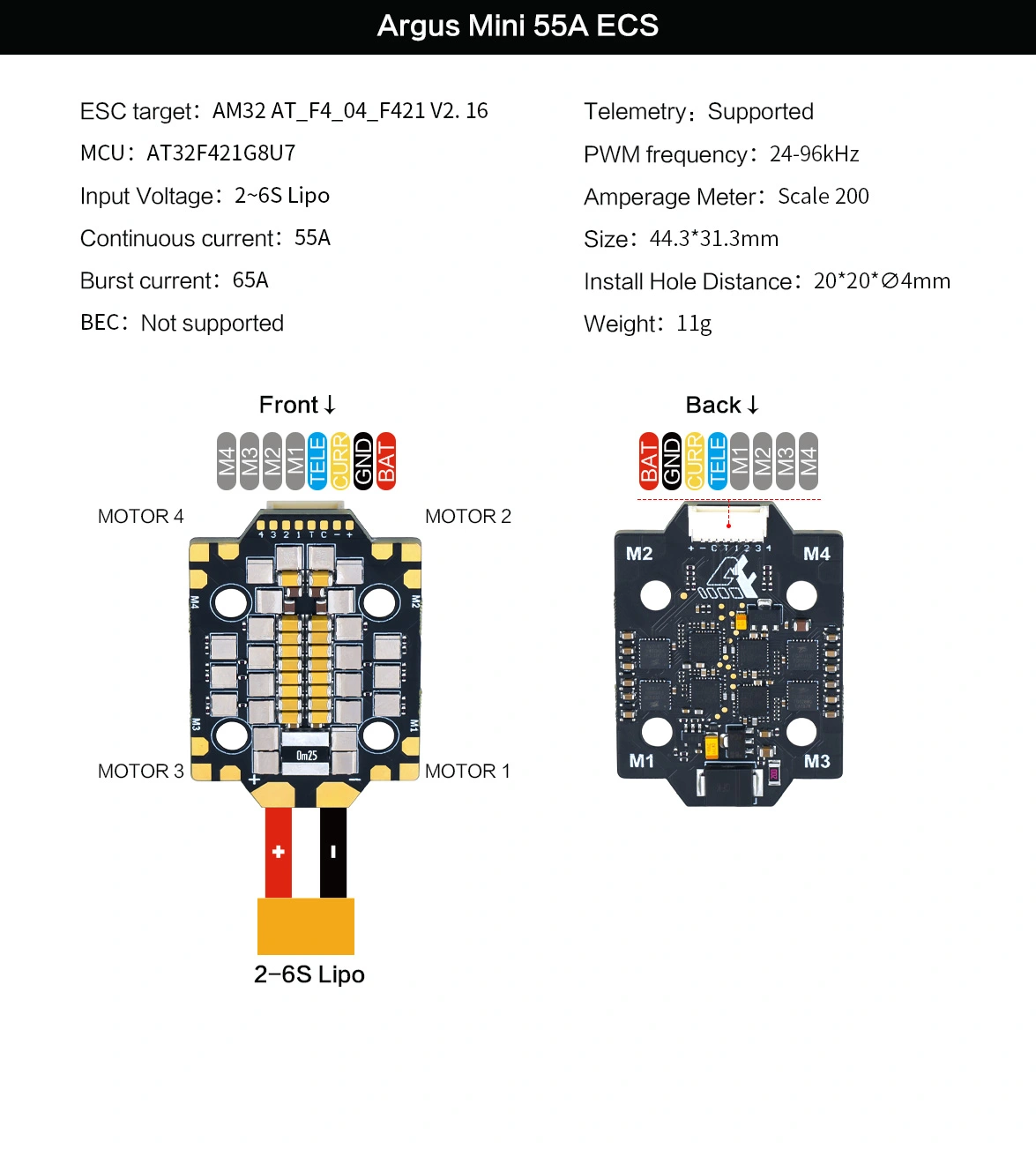

4-in-1 ESC: Argus Mini 55A

• ESC Target: AM32 AT_F4_04_F421 V2.16
• MCU: AT32F421G8U7
• Input Voltage: 2–6S LiPo
• Continuous Current: 55A
• Burst Current: 65A
• PWM Frequency: 24–96kHz
• Telemetry: Supported
• Ammeter: Scale 200
• BEC: Not supported
• Size: 44.3×31.3mm
• Mount: 20×20mm (4mm spacing)
• Weight: 11g

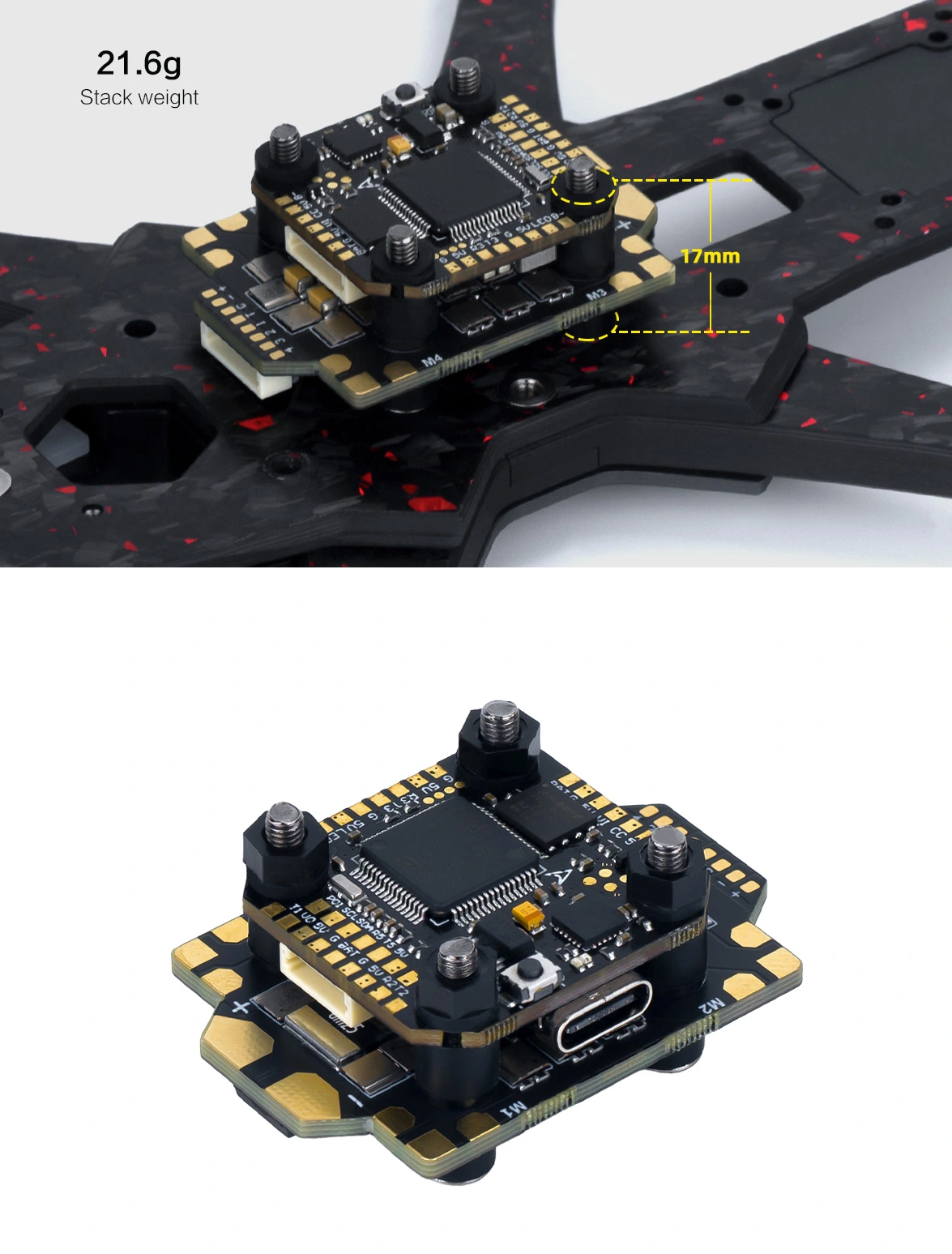

Stack Overall

• Total Weight: 21.6g
• Mount: 20×20mm

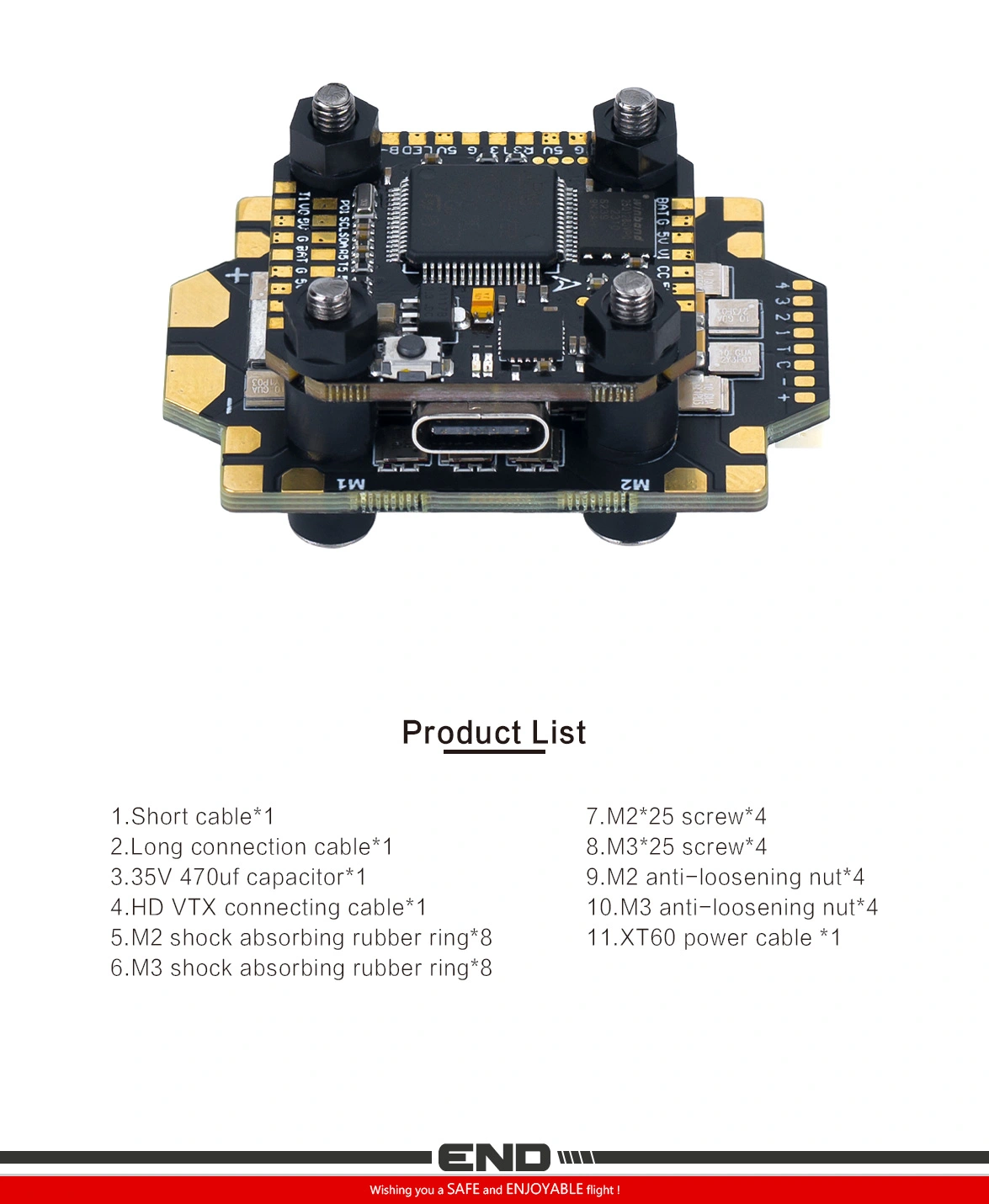

Package Contents

1. Short connection cable ×1
2. Long connection cable ×1
3. 35V 470uF capacitor ×1
4. HD VTX cable ×1
5. M2 shock-absorbing rubber rings ×8
6. M3 shock-absorbing rubber rings ×8
7. M2×25 screws ×4
8. M3×25 screws ×4
9. M2 anti-loosening nuts ×4
10. M3 anti-loosening nuts ×4
11. XT60 power cable ×1
